🔌 How to Connect my Pin Pad to the Quickvee POS

🔌 How to Connect my Pin Pad to the Quickvee POS


Connecting your PAX Pin Pad to the Quickvee POS is easy — it only requires an Ethernet cable.

(No direct cable connection between the POS and Pin Pad is needed.)

  1. Connect the Ethernet Cable to the Pin Pad

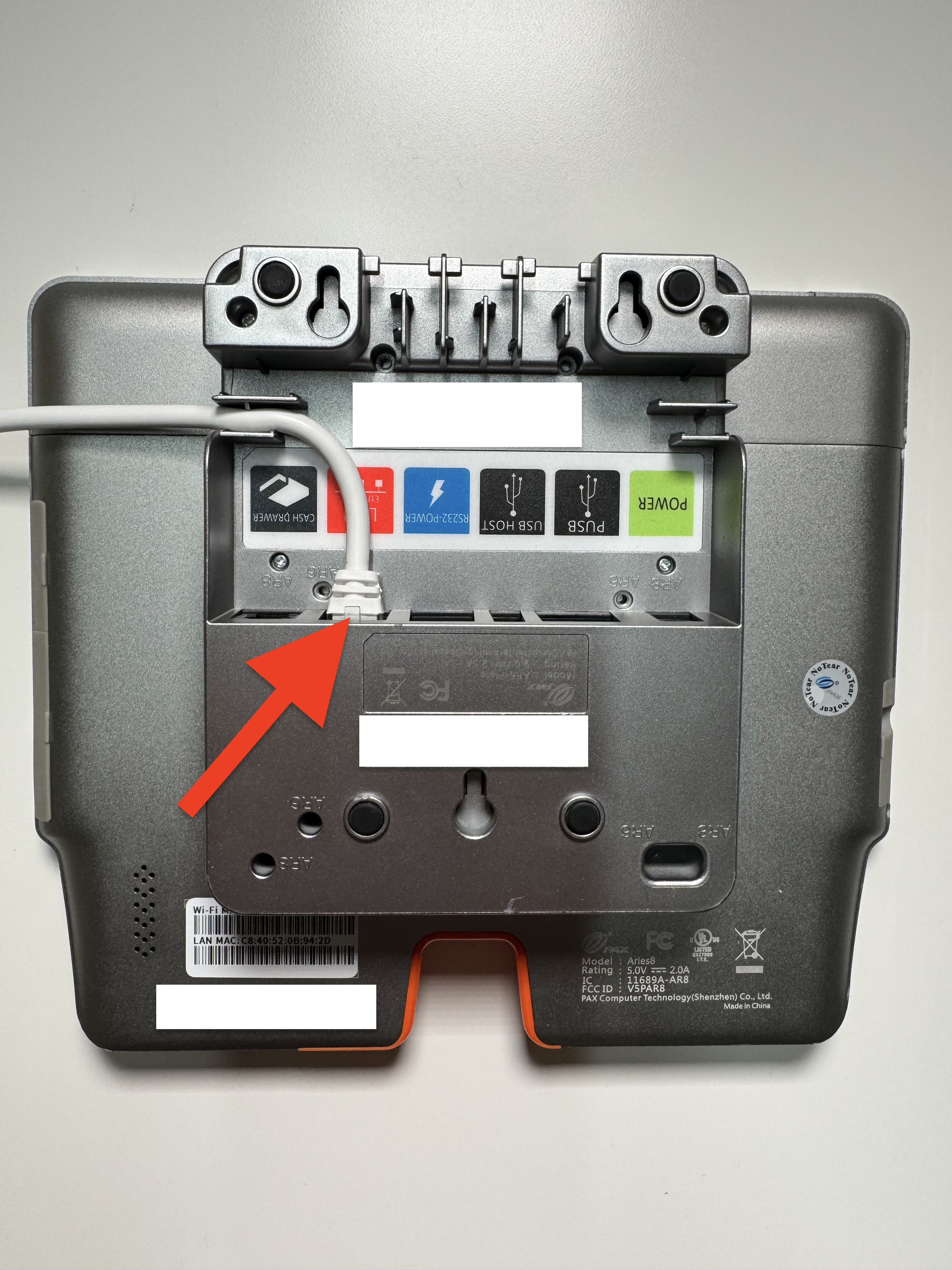

PAX Aries 8 Ethernet Connection Port

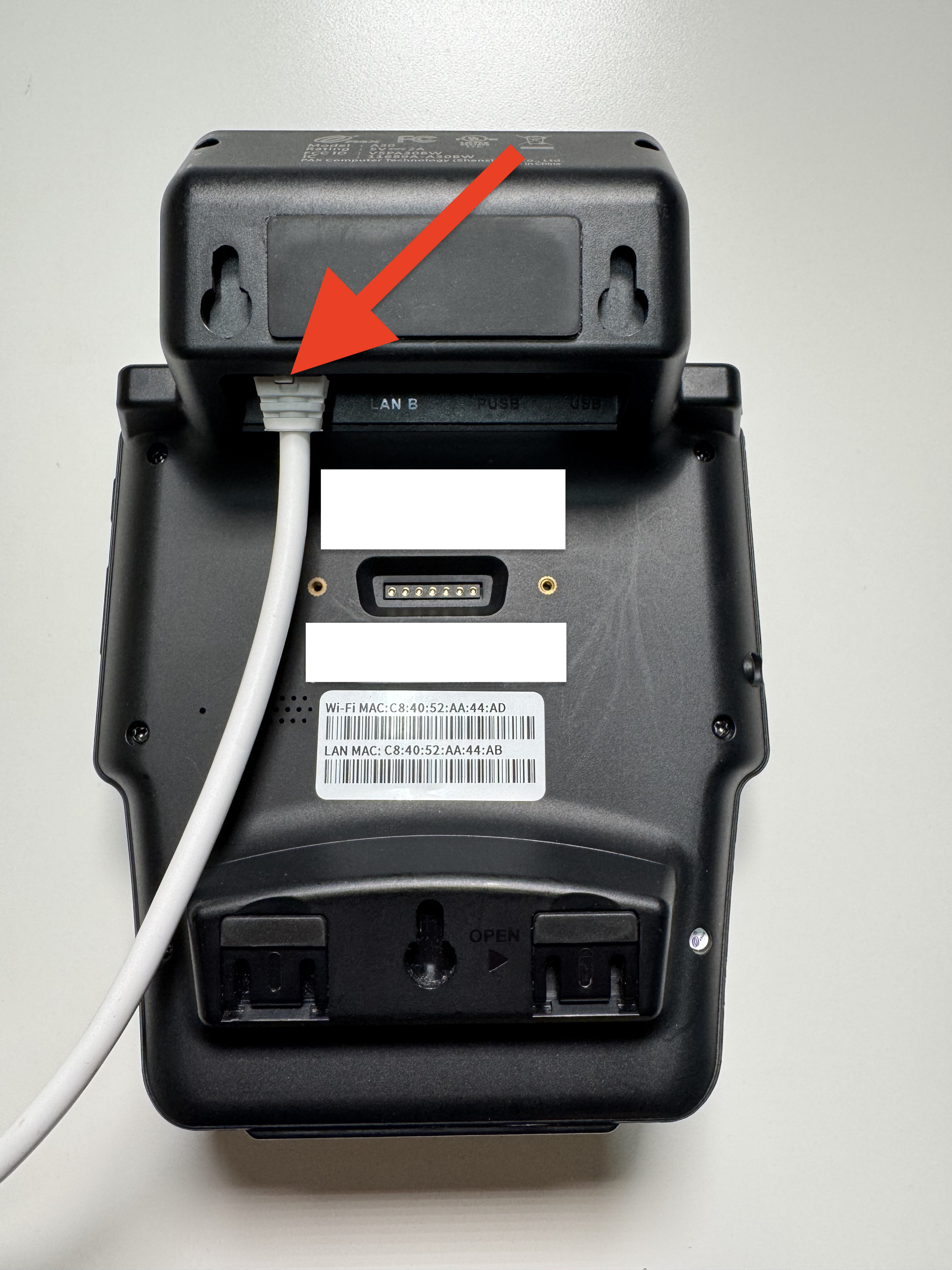

  1. PAX A30 Ethernet Connection Port

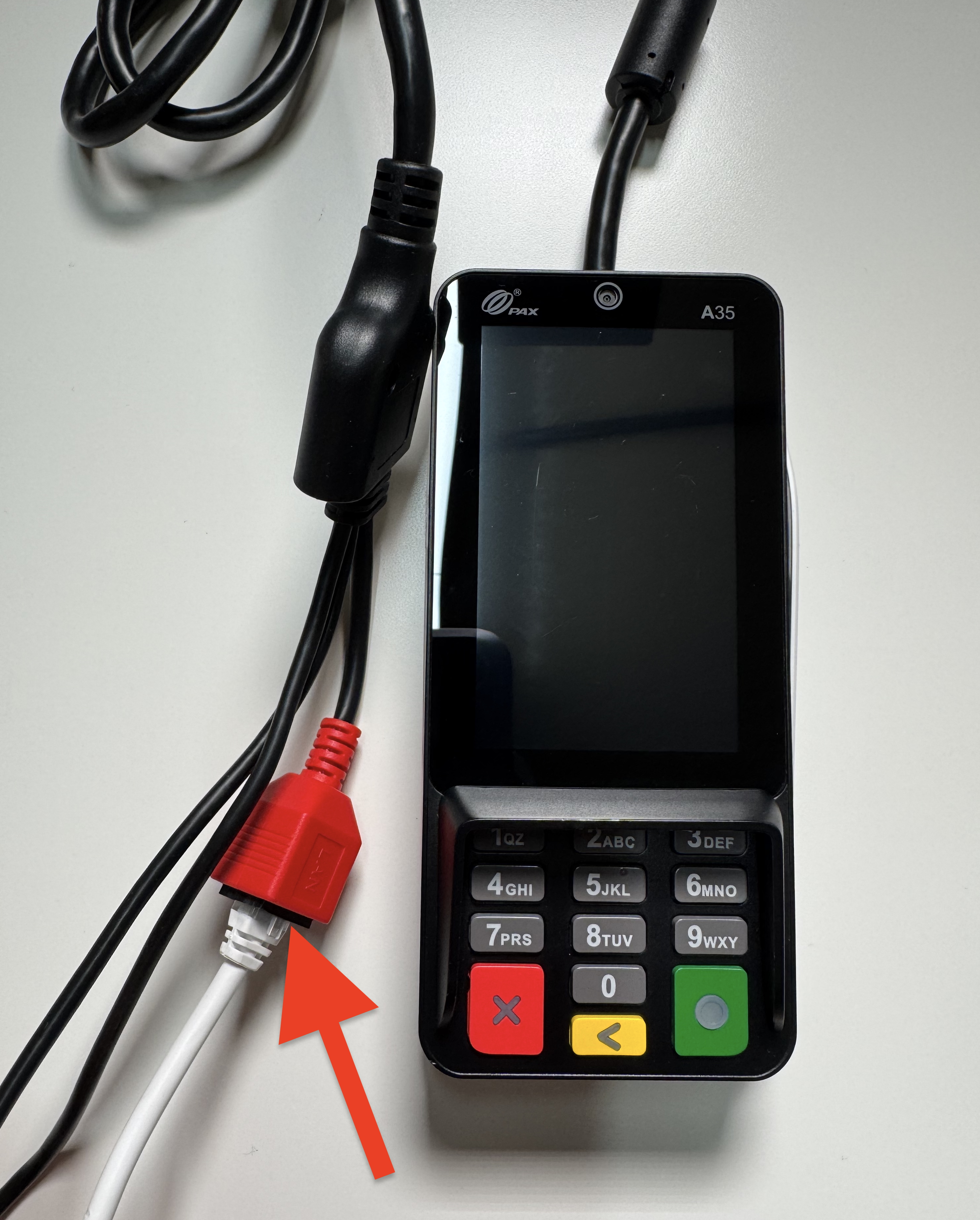

  1. PAX A35 Ethernet Connection Port

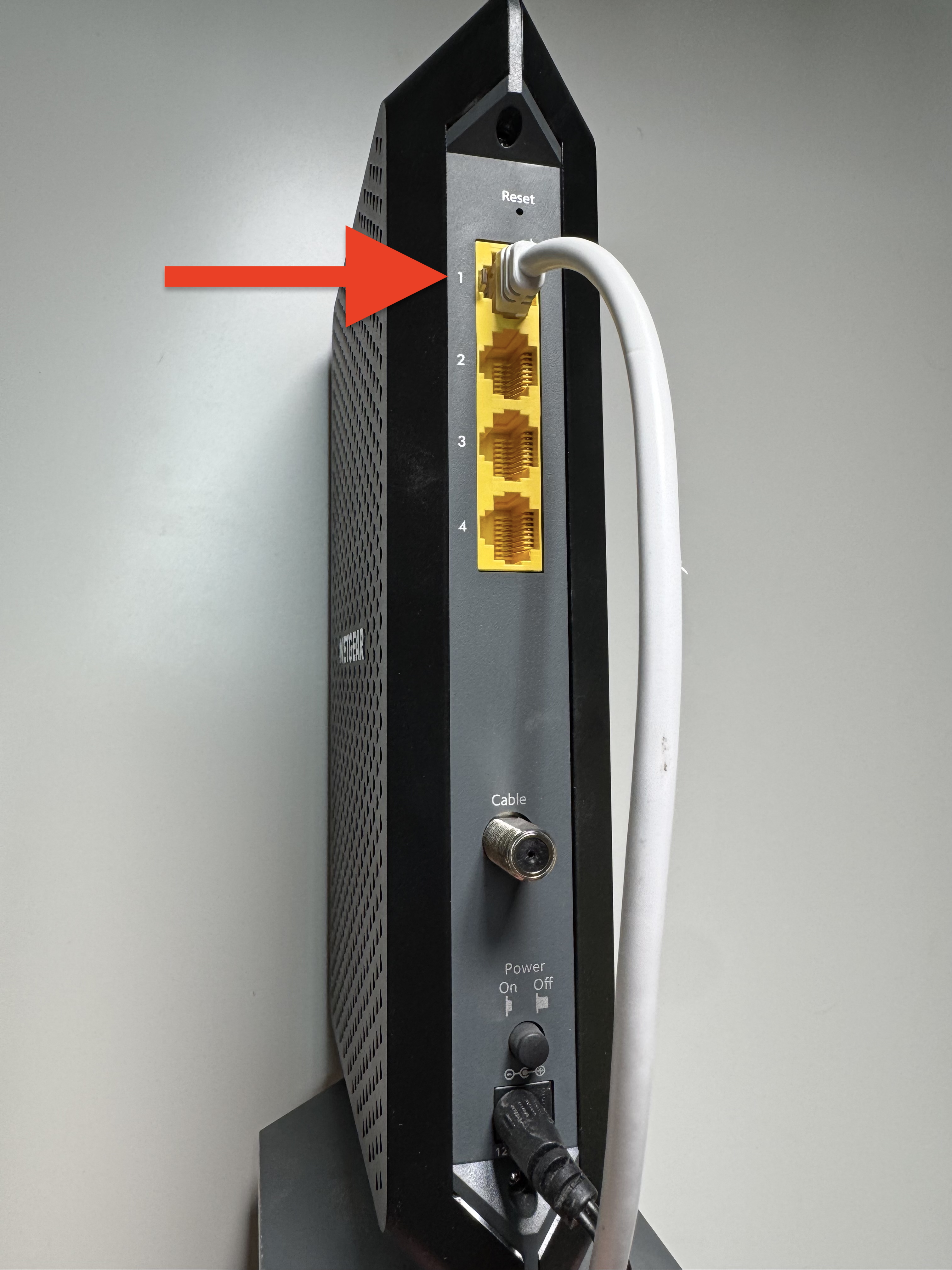

2. Connect the Other End of the Ethernet Cable to your Internet Switch/Modem



3. Connect the Power Cable to a Wall Outlet or Power Strip

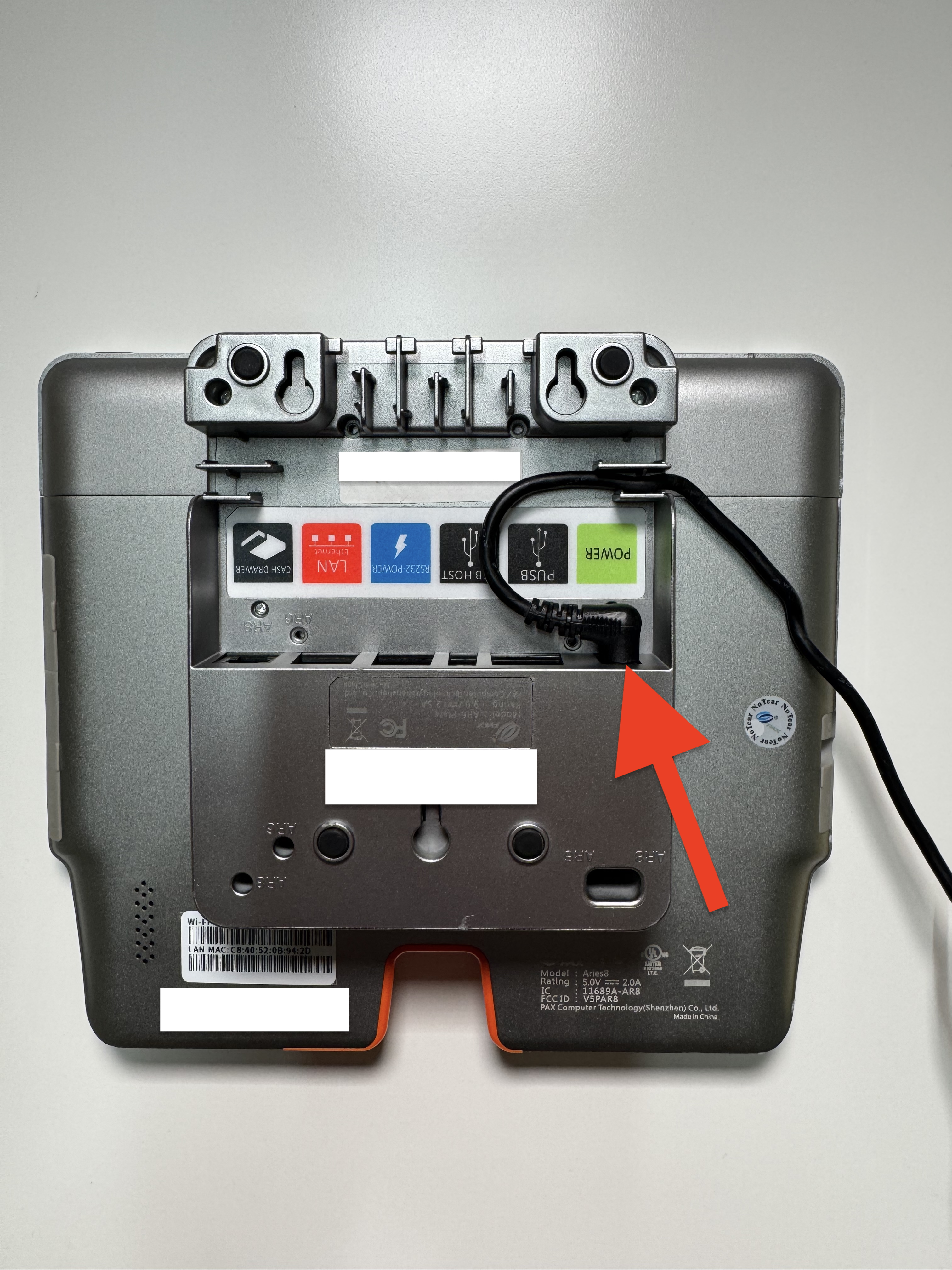

  1. PAX Aries 8 Power Cable Port


  1.  Important: Always connect the Pin Pad to a power source that remains constantly on.
  2.  If the power is interrupted, your daily batch may not close properly.

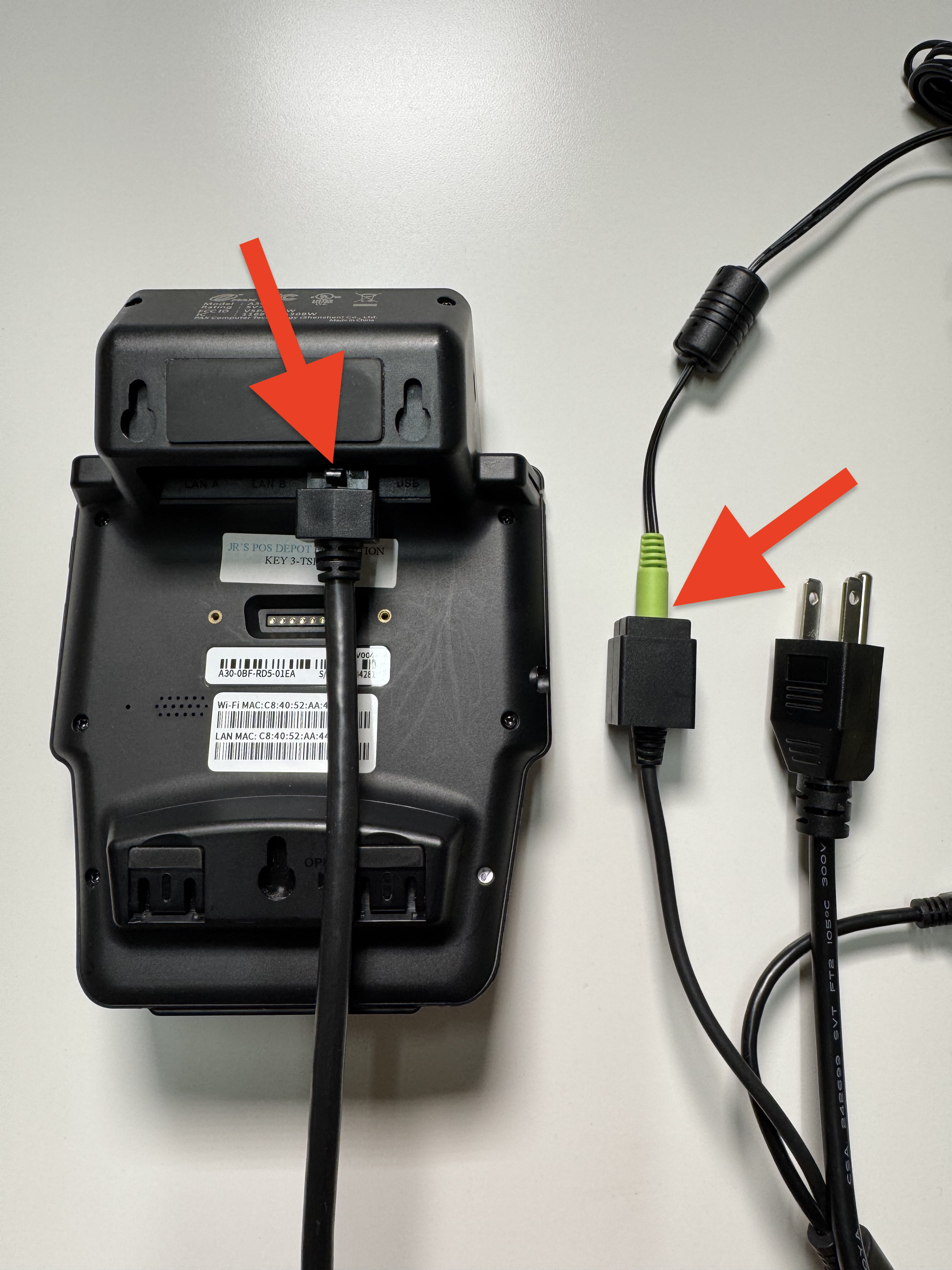

  1. PAX A30 Power Cable Port


Alert
  1. ⚡ Important: Always connect the Pin Pad to a power source that remains constantly on.
  2. If the power is interrupted, your daily batch may not close properly.

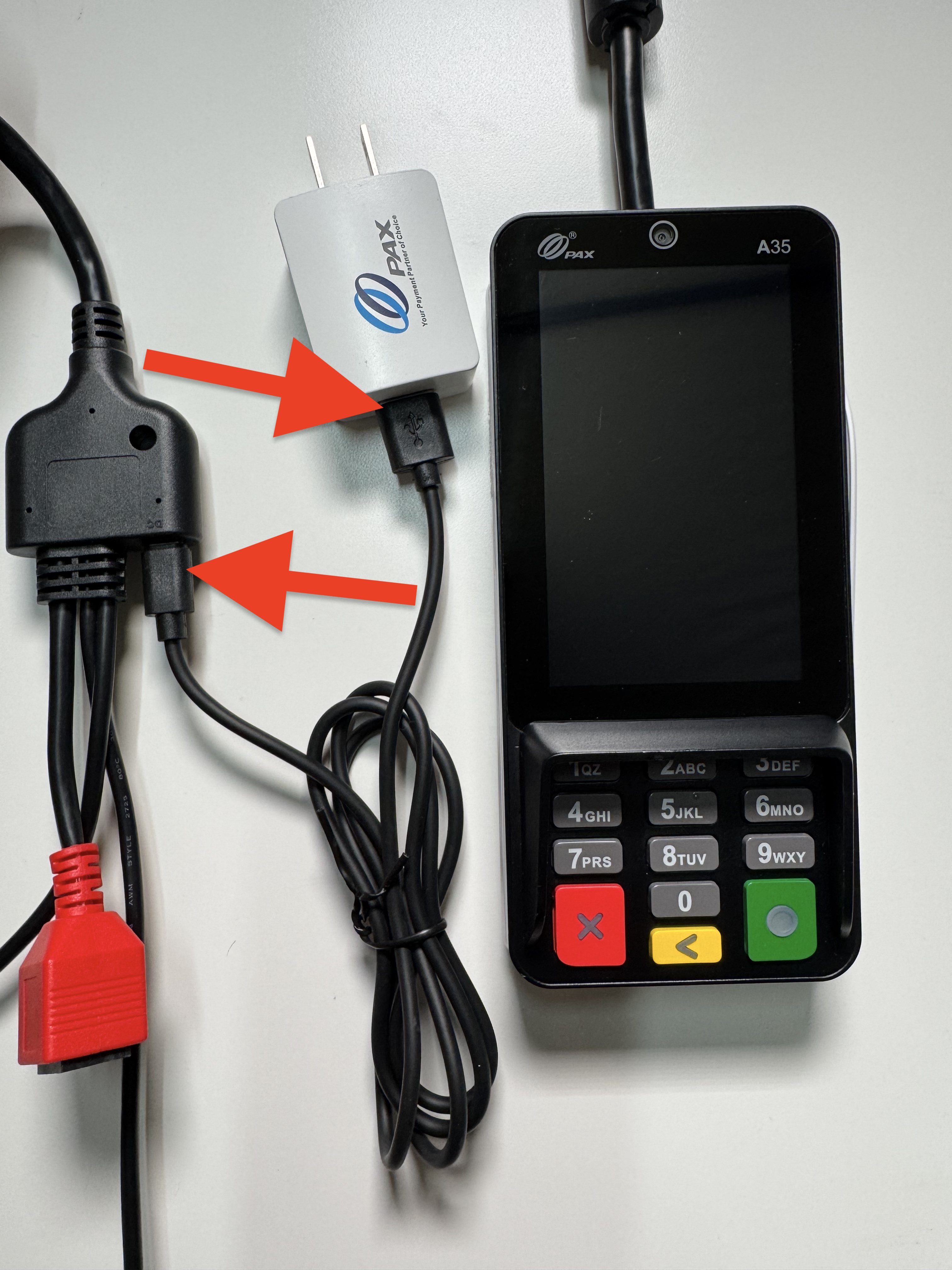

  1. PAX A35 Power Cable Ports


Alert
  1. ⚡ Important: Always connect the Pin Pad to a power source that remains constantly on.
  2. If the power is interrupted, your daily batch may not close properly.

4. Enable the Pin Pad from the Quickvee POS

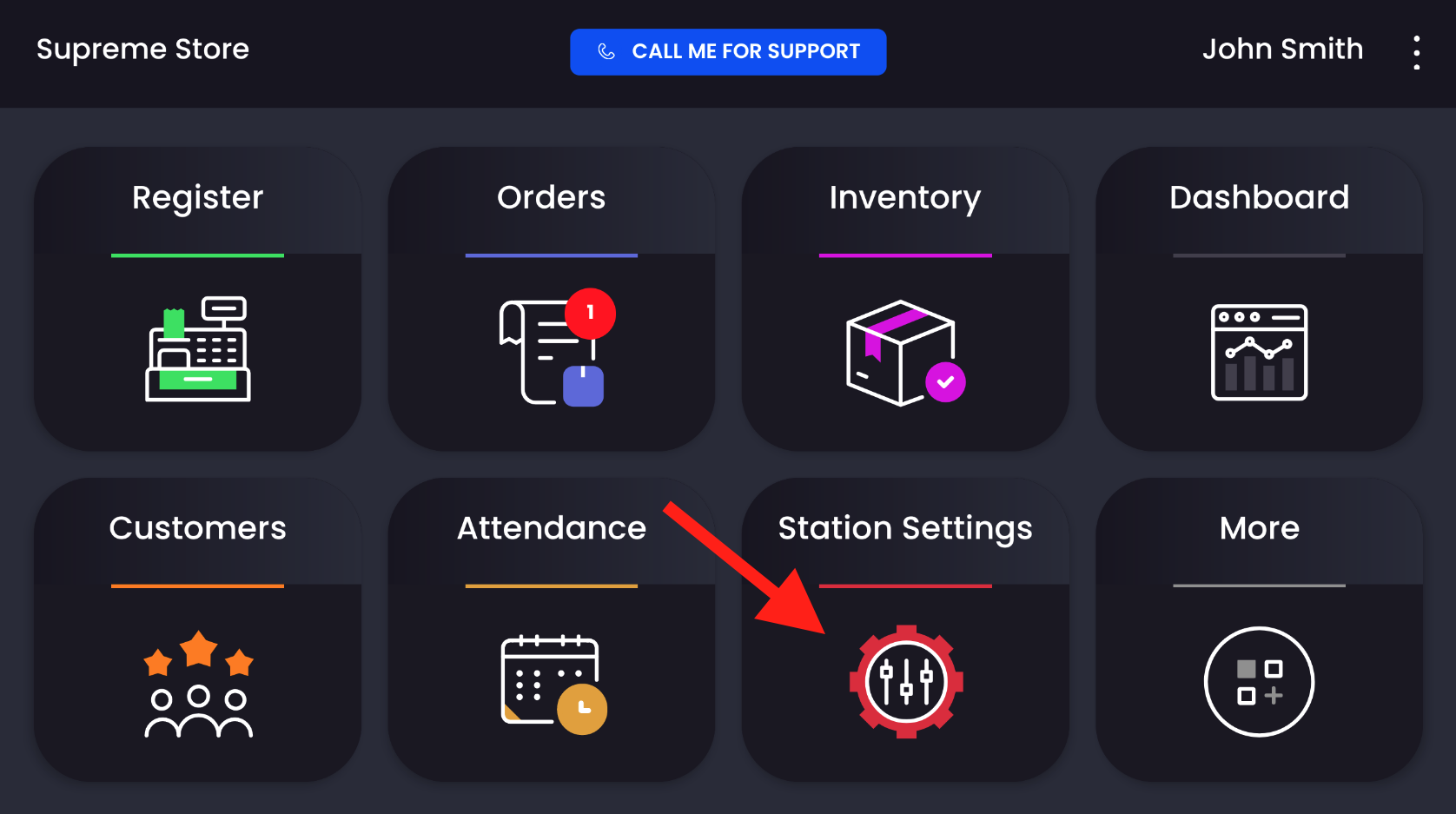

  1. Select Station Settings

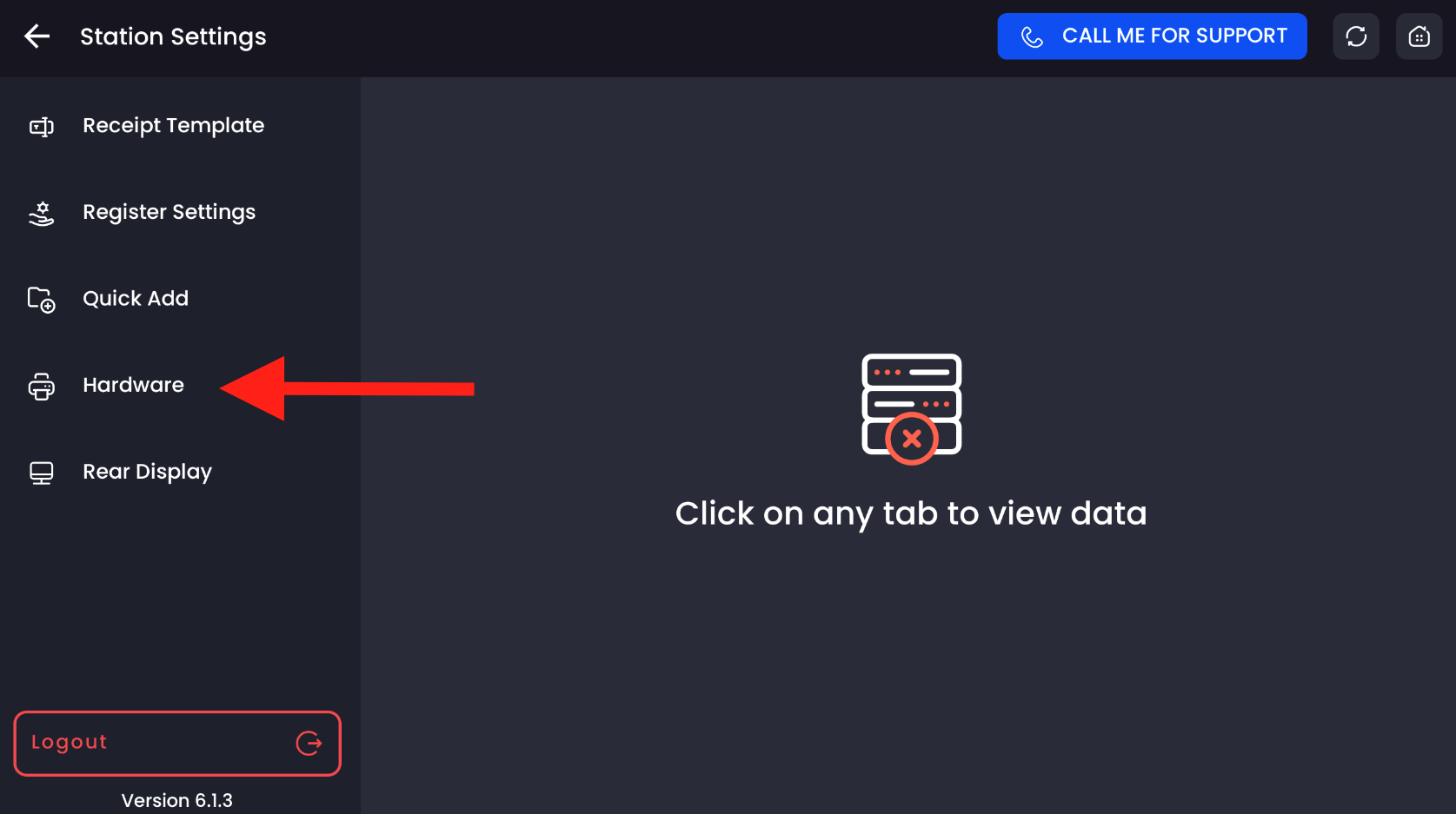

  1. Select Hardware

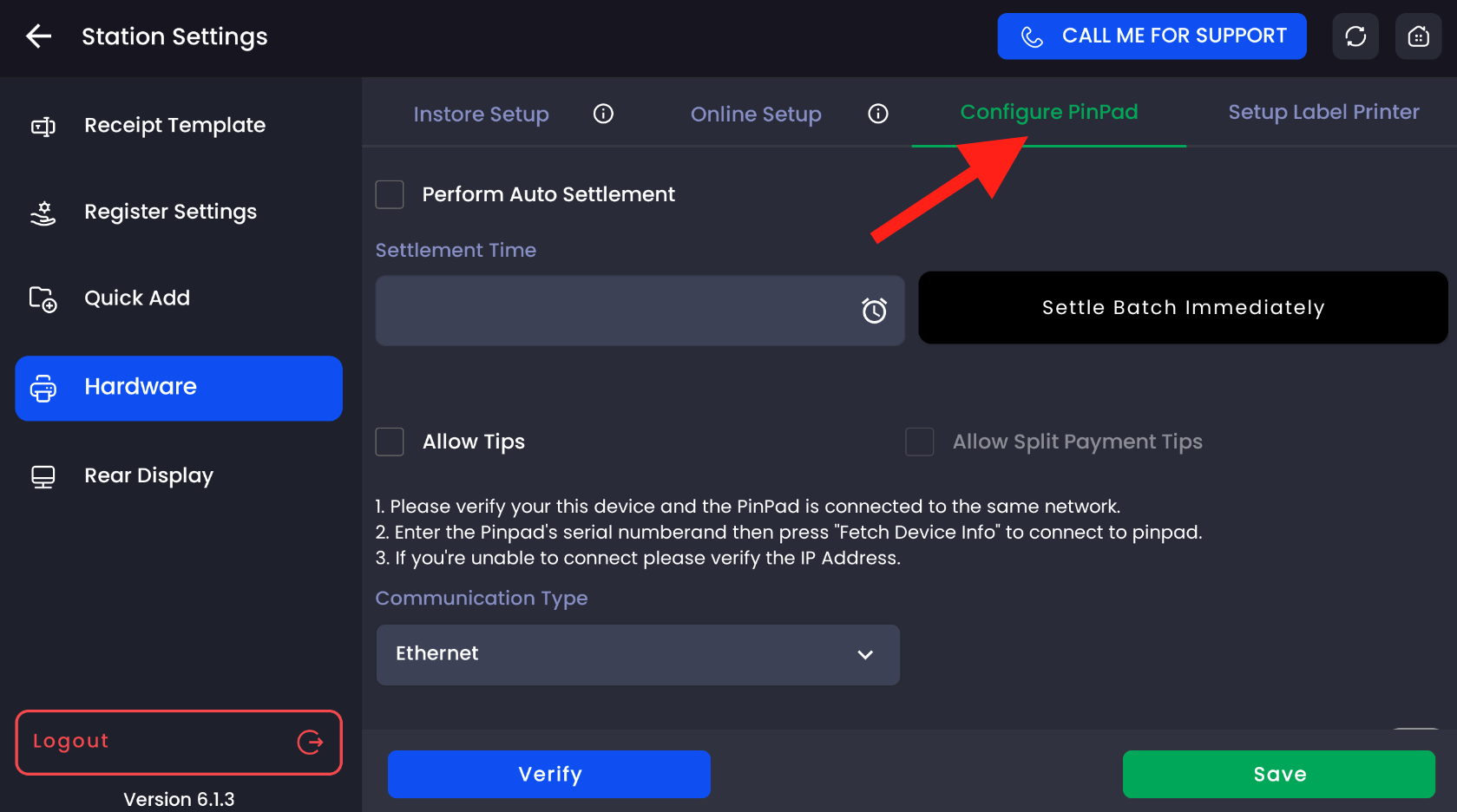

    1. Select Configure Pin Pad

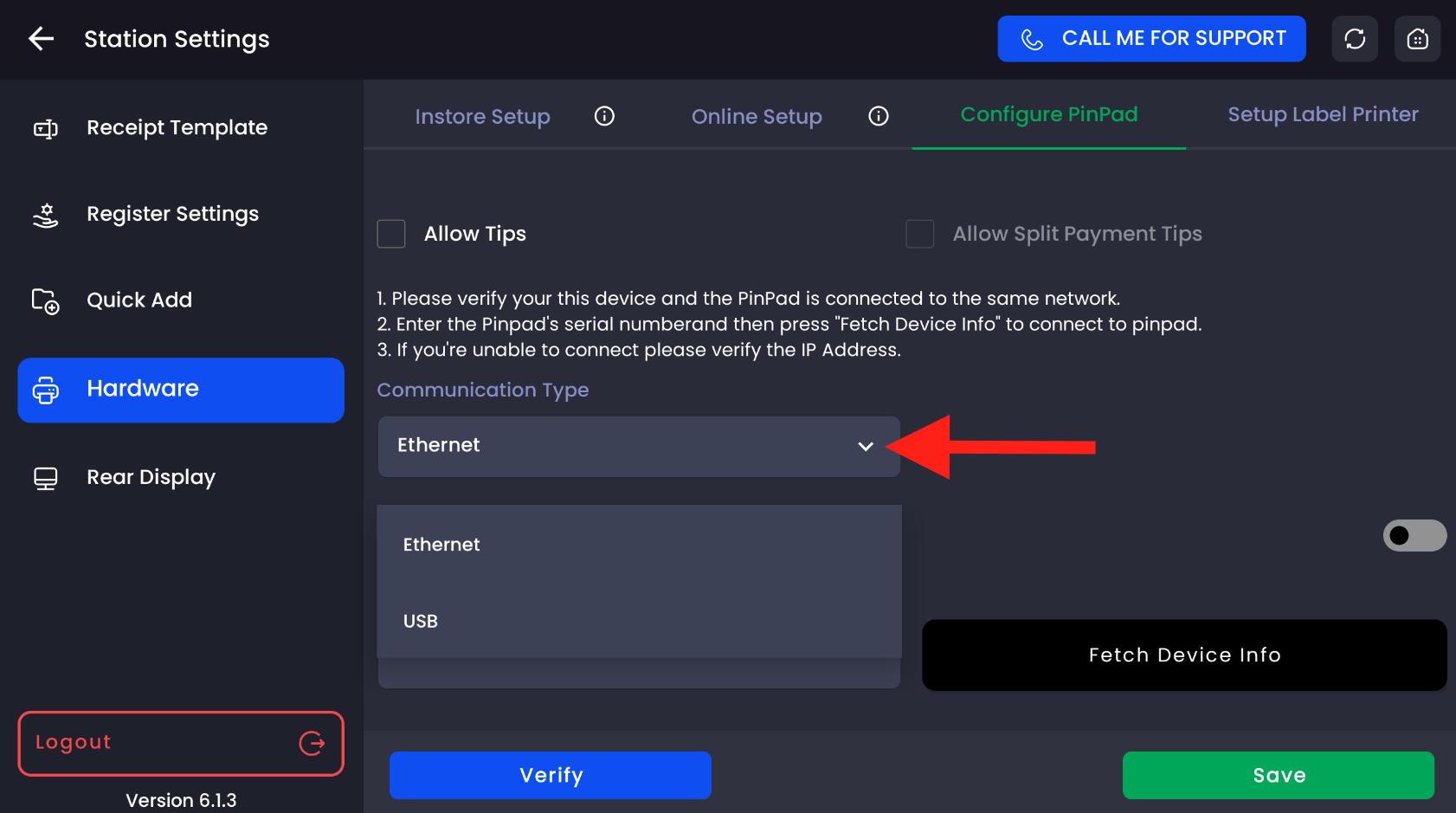

  1. From the Drop Down Select "Ethernet"


  1. Type in your Pin Pad's Serial Number Located on the Back of the Device

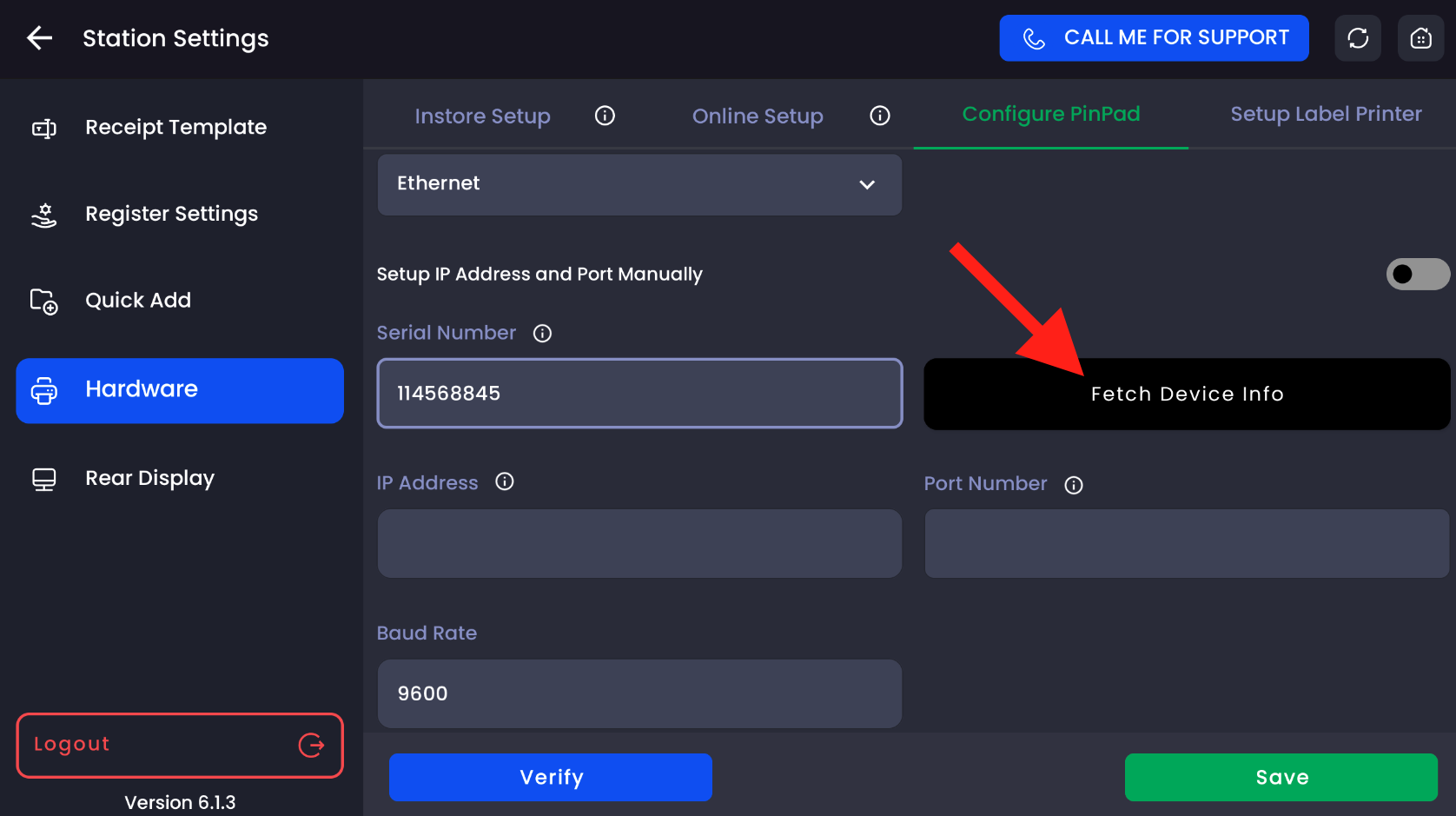

  1. Select "Fetch Device Info"

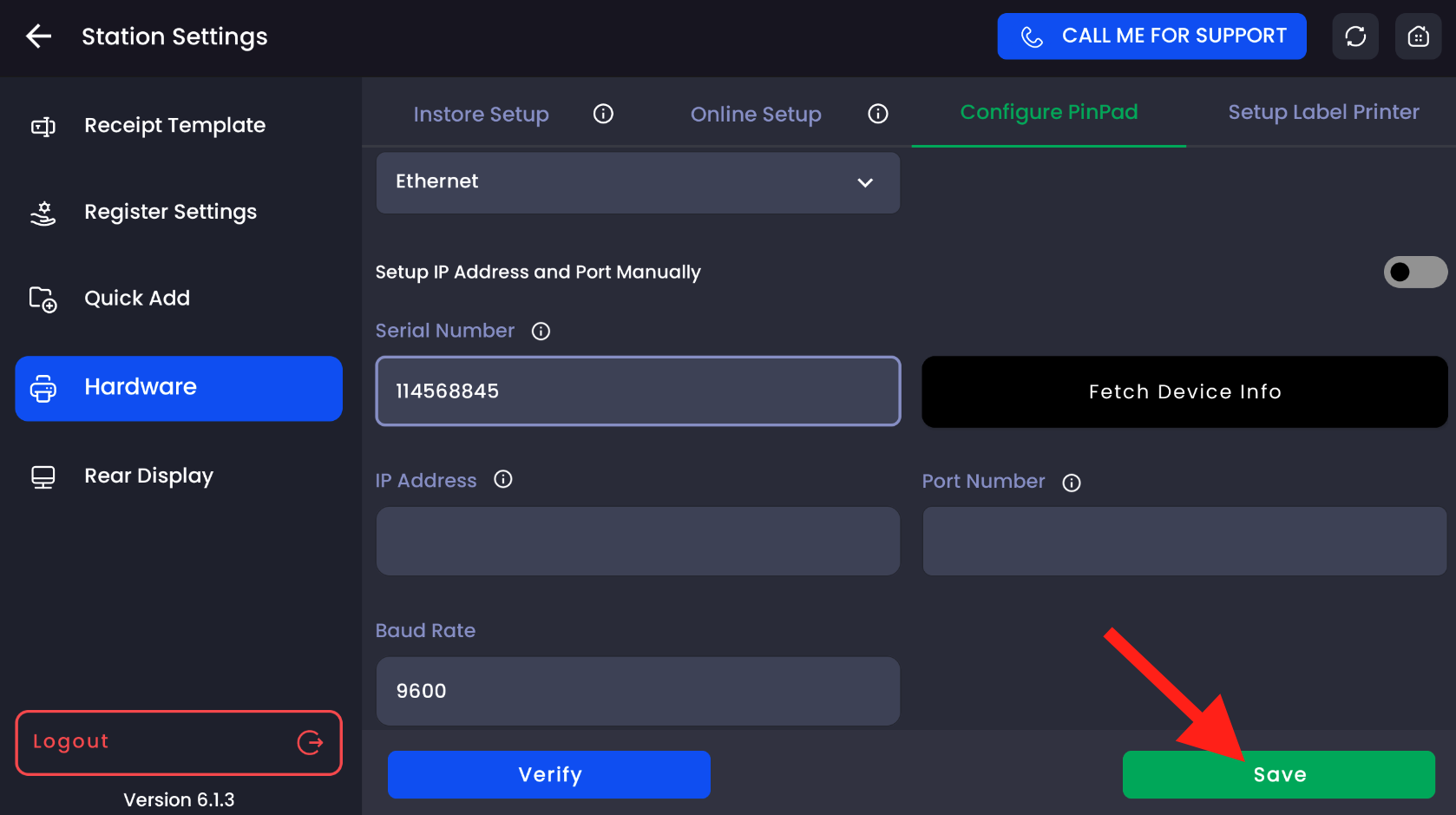

  1. Select "Save"

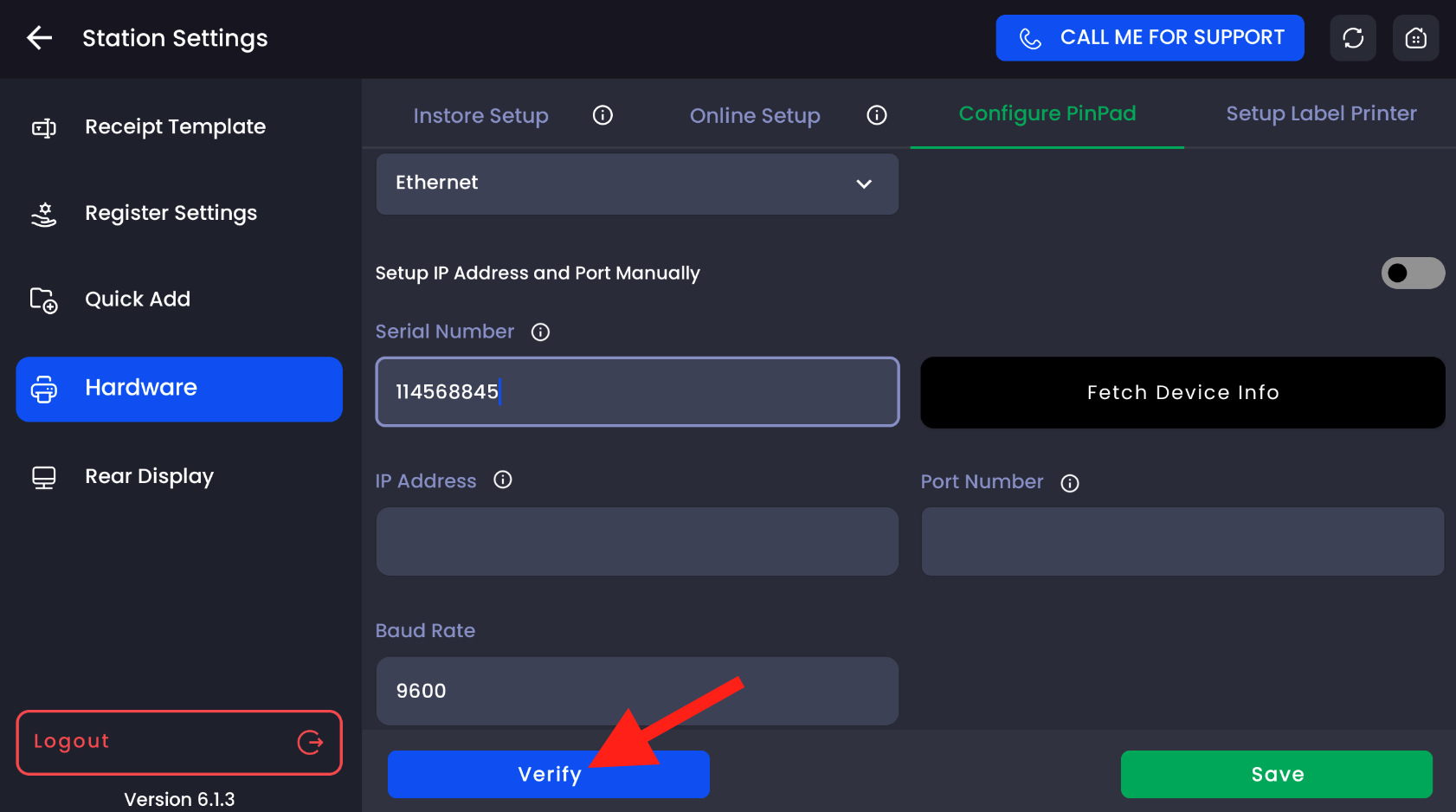

  1. Select "Verify"



Once you select “Verify,” the message “PAX Device Connected” will appear if the connection is successful.


Notes
After connecting the Pin Pad, it is recommended to run a $0.01 test transaction from the register screen to confirm everything is working properly.
